Mature and futuristic.

Fuel cell cars are technically electric vehicles that create their own electricity from oxygen and hydrogen. Hyundai was first in mass-producing fuel-cell vehicles and continues to be a leader in sustainable motoring technology.

A dog looking out of the window of a parked car as a Hyundai Nexo drives past.

Is it for you?

Fuel Cell Electric is a good choice for you if you value innovative technologies, want all the advantages of a battery electric motor, and prefer quick fuelling.

How it works.

When hydrogen stored in the tanks enters the fuel cell stack, it is broken down into protons and electrons. The flow of electrons created in the fuel cell provides electricity that drives the electric motor, and the protons react with oxygen molecules from the air, generating heat and water – the only emission.
  1. Step 1 of the fuel cell system technology of Hyundai.

    1. The fuel cell stack.

    This is where the chemical reaction between stored hydrogen and atmospheric oxygen takes place. Fuel cell stacks consist of hundreds of cells, and each cell consists of an electrolyte membrane, separator and catalyst, a fuel electrode and an air electrode.
  2. Step 2 of the fuel cell system technology of Hyundai.

    2. The fuel processing system.

    Here, hydrogen is safely transferred from the high-pressure hydrogen tanks to the low-pressure fuel cell stack.
  3. Step 3 of the fuel cell system technology of Hyundai.

    3. The air processing system.

    The oxygen necessary to react with the hydrogen is drawn from the atmosphere. To keep the fuel cell stack free from pollutants, the indrawn air passes through a purification system that cleans it of any particulates. This is why FCEVs leave cleaner air behind.
  4. Step 4 of the fuel cell system technology of Hyundai.

    4. The thermal management system.

    High heat would curb the optimal performance and lifespan of the fuel cell stack. The thermal management system prevents the electrolyte membrane from being exposed to such high temperatures.
  1. 1
  2. 2
  3. 3
  4. 4
  1. Hydrogen tanks of Hyundai fuel cell vehicles.

    Safe and reliable.

    Our hydrogen tanks are made of carbon fibre reinforced plastics, and the inner surface consists of a thin polyamide liner (nylon). Our engineers put great efforts into building reliable high-pressure hydrogen storage. With meticulous testing, they achieved maximum safety for Hyundai FCEV.
  1. 1
  1. The fuel cell engine in the Hyundai NEXO.

    Converting energy.

    A motor then converts the electricity produced in the fuel cell stacks and stored in the high-voltage battery to kinetic energy. Just like in hybrid and battery electric cars, a regenerative braking system moves electricity back to the battery when the driver uses the brakes, improving fuel economy.
  1. 1

Fuelling is quick, safe, and convenient.

Fuelling is as simple as fuelling a traditional petrol-powered car and can be done in 3 to 5 minutes. More and more fuelling stations are coming online each year and Hyundai supports a pan-European initiative to grow this network.





The Hyundai NEXO being fueled with hydrogen

Fuelling.

With just 5 minutes filling time and a driving range of 666 kilometres (WLTP), the Hyundai NEXO proves the practicality of an eco-friendly powertrain.

Building a hydrogen society.

Hydrogen is an infinite substance that makes up more than 90% of the molecules in the universe. The McKinsey report ‘Hydrogen meets digital’ predicted that around 2050, about 18% of the energy used in the world will be hydrogen. This includes FCEVs on the road, as well as the energy required for power generation, cooling and heating buildings, as well as operating industrial facilities.
The Hyundai NEXO in lighting for the hydrogen society.
The Hyundai Nexo, shown from the side, standing before a futuristic building at sunset.

Available now.

The Hyundai NEXO embodies Hyundai’s commitment to advanced eco-friendly vehicle development.
Side view of the Hyundai Nexo on a street.

Hydrogen to You.

Learn more about Hyundai's commitment to fuel cell technology and our hydrogen advocacy program.
The HTWO logo for the next-generation hydrogen fuel cell system.

HTWO.

In December 2020 Hyundai introduced ‘HTWO’ to represent our next-generation hydrogen fuel cell system for a highly efficient and diversified lineup of FCEVs.

Xcient

Committed to hydrogen in all modes of transportation.

Hyundai plans to expand its XCIENT Fuel Cell heavy-duty commercial trucks sales in Europe, the U.S. and China as demand for clean transport solutions grows. To support a growing hydrogen ecosystem, Hyundai built a business case for more than 100 hydrogen fuelling stations in Switzerland, which would be enough to support not only commercial fuel cell electric vehicles but personal ones, as well.

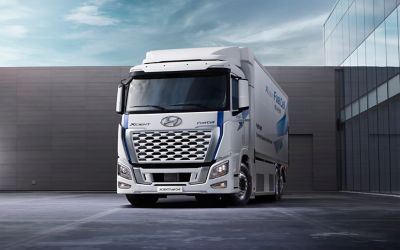

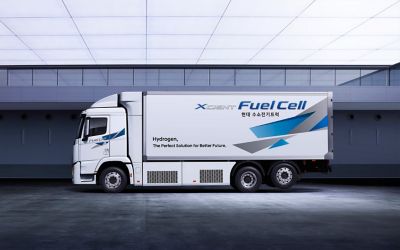

An Xcient fuel cell truck driving.

Partnership H2Energy.

Hyundai Hydrogen Mobility AG is a partnership with H2 Energy, renting out emission-free commercial vehicles.

Coming together for an emission-free future.

Hyundai Motor Company and H2Energy, together with the ‘H2 Mobility Association’, have set the course for a sustainable fleet of heavy fuel cell trucks in Switzerland. This ecosystem will only be possible through the cooperation of hydrogen producers, filling station operators, logistic companies and Hyundai.
 A Hyundai XCIENT Fuel Cell Truck driving on a mountain road in the Swiss alps.
